Basic Humbucker Wiring: With and Without Tone Control

The humbucker is one of the most common types of pickups in electric guitars, known for its warm tone and ability to reduce noise. In this article, we’ll explore the basic wiring for a humbucker, both with a tone control and without it, and analyze how the signal travels from the pickups to the output jack.


The Signal Path: From Pickups to Output Jack

The signal in an electric guitar starts at the pickups and travels through the electrical system before reaching the output jack. Here’s the basic path:

  1. String vibrations: The humbucker converts the string vibrations into an electrical signal.
  2. Pickup selector: The selector determines which pickup or combination of pickups sends the signal to the system.
  3. Volume control: The signal goes to the volume potentiometer, where its level is adjusted.
  4. Tone control (optional): If present, this circuit adjusts the high frequencies using a capacitor and resistor.
  5. Output jack: The signal travels to the jack, which transmits it to the amplifier through the instrument cable.

Humbucker Wiring Without Tone Control

In this configuration, the pickup signal goes directly to the volume control and then to the output jack, bypassing the tone circuit. It’s a simple connection that maximizes the clarity and frequency range of the humbucker.

Wiring Diagram:

  1. Humbucker hot wire: Connect it to the input terminal of the volume potentiometer.
  2. Ground wire: Connect it to the potentiometer casing.
  3. Pickup selector output: Connect it to the input terminal of the volume potentiometer.
  4. Volume potentiometer output: Connect it to the positive terminal of the output jack.
  5. System ground: Make sure to connect the potentiometer casing and the negative terminal of the output jack.

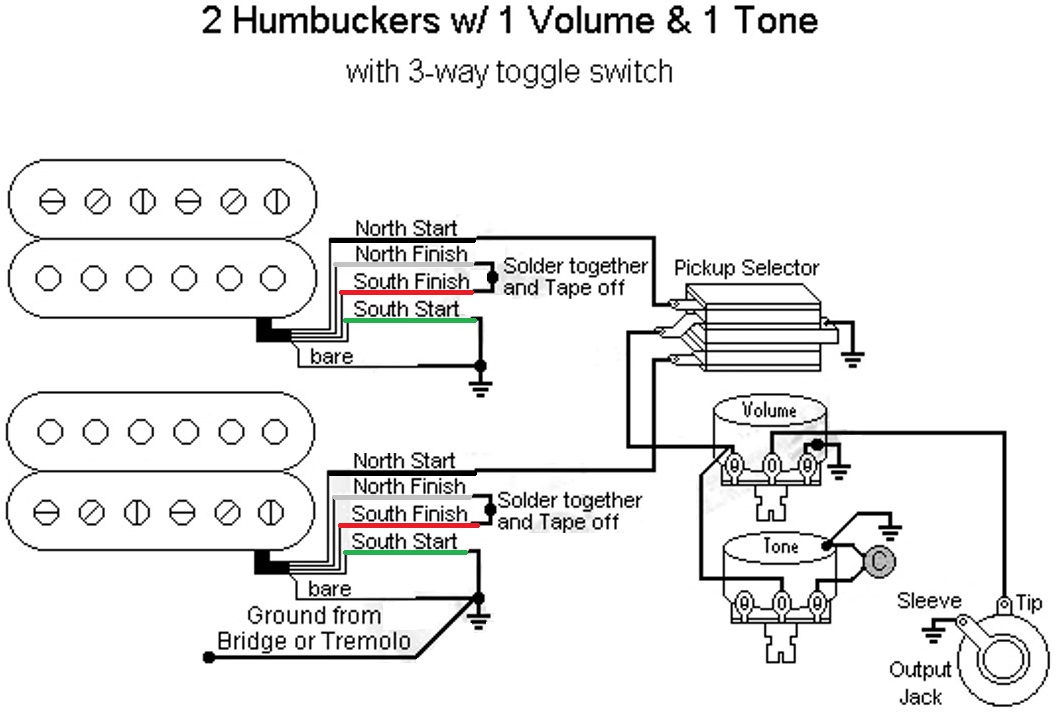

humbucker 3 way

This configuration is ideal for guitarists seeking a pure and direct tone.


Humbucker Wiring With Tone Control

Adding a tone control allows you to adjust the high frequencies of the signal using a capacitor and a potentiometer.

Wiring Diagram:

  1. Humbucker hot wire: Connect it to the input terminal of the volume potentiometer.
  2. Humbucker ground wire: Connect it to the potentiometer casing.
  3. Pickup selector output: Connect it to the input terminal of the volume potentiometer.
  4. Volume potentiometer output: Connect it to the positive terminal of the output jack.
  5. Tone control:
    • Connect a capacitor between one of the tone potentiometer terminals and its casing.
    • Connect one of the tone potentiometer terminals to the input terminal of the volume potentiometer.

humbucker no tone

This configuration provides greater control over the brightness of your sound.


What Capacitor Should Be Connected to the Tone Pot?

The capacitor connected to the tone pot in an electric guitar is a key component that influences the attenuation of high frequencies, shaping your instrument’s tonal character. The choice of capacitor depends on the type of pickups and the tonal range you prefer.

Common Capacitor Values

0.047 µF (microfarads)

  • Usage: This is the typical value for guitars with single-coil pickups (like Stratocasters and Telecasters).
  • Tone: Provides a wider range of high-frequency attenuation, resulting in a warmer or even “darker” tone when the tone control is fully rolled off.

0.022 µF

  • Usage: This is the standard value for guitars with humbuckers (like Les Paul models).
  • Tone: Offers more subtle high-frequency attenuation, maintaining greater clarity compared to a 0.047 µF capacitor.

0.01 µF or lower

  • Usage: Ideal for guitarists who prefer minimal treble reduction.
  • Tone: Provides a brighter sound, even with the tone pot fully rolled off.

0.1 µF

  • Usage: Less common, but can be found in some vintage models.
  • Tone: Produces a drastic reduction in treble, ideal for those seeking an extremely warm tone.

Wiring Tips

  • Use clean soldering: Ensure firm connections to avoid unwanted noise.
  • Select quality components: High-quality potentiometers and capacitors (like CTS and Orange Drop) can improve tone and durability.
  • Check polarity: Ensure proper connections between the positive and ground wires to avoid phase or noise issues.

Conclusion

Wiring a humbucker, whether with or without a tone control, is an essential task for any guitarist interested in customizing their instrument. Understanding how the signal travels from the pickups to the output jack will also help you troubleshoot issues and optimize your guitar for the best sound possible.

Explore these wiring configurations and take your guitar’s tone to the next level!
