Split Coil and Spin-a-Split - Expand Your Guitar's Versatility
How Split Coil works in electric guitars, the benefits it offers, and how you can use it to achieve a wide range of tones with your humbuckers.
What is Split Coil?
Split Coil is a common modification in electric guitars that allows a humbucker (dual-coil pickup) to function as a single-coil pickup. This significantly enhances your guitar’s tonal versatility by letting you switch between the warm, powerful sounds of a humbucker and the bright, defined tones of a single-coil with the flip of a switch or the pull of a button.
How Does Split Coil Work?
A humbucker consists of two coils working together to cancel noise and deliver a fuller tone. The Split Coil disconnects one of these coils, leaving only one active. The result is a brighter, thinner tone, similar to that of a single-coil pickup.
Advantages:
- Versatility: Access a broader range of tones without switching guitars.
- Less noise than a pure single-coil: While not as quiet as a full humbucker, many Split Coil setups are relatively silent.
- Dynamic switching: Perfect for players who cover multiple styles and need quick adaptability.
Limitations:
- Lower output: Split Coil tones typically have less power than full humbucker tones.
- Additional noise: Disconnecting one coil may introduce some hum characteristic of single-coils.
How is Split Coil Activated?
Split Coil is usually controlled by a switch, a push-pull potentiometer, or a mini toggle switch. Here are the most common options:
- Push-Pull Potentiometer: Installed on the volume or tone pot, activated by pulling up the knob.
- Mini Toggle Switch: A dedicated switch for toggling between humbucker and single-coil modes.
- Pickup Selector: Some advanced designs integrate Split Coil functionality into the pickup selector.
- Potentiometer: Gradually controls how much of one coil’s signal is grounded.

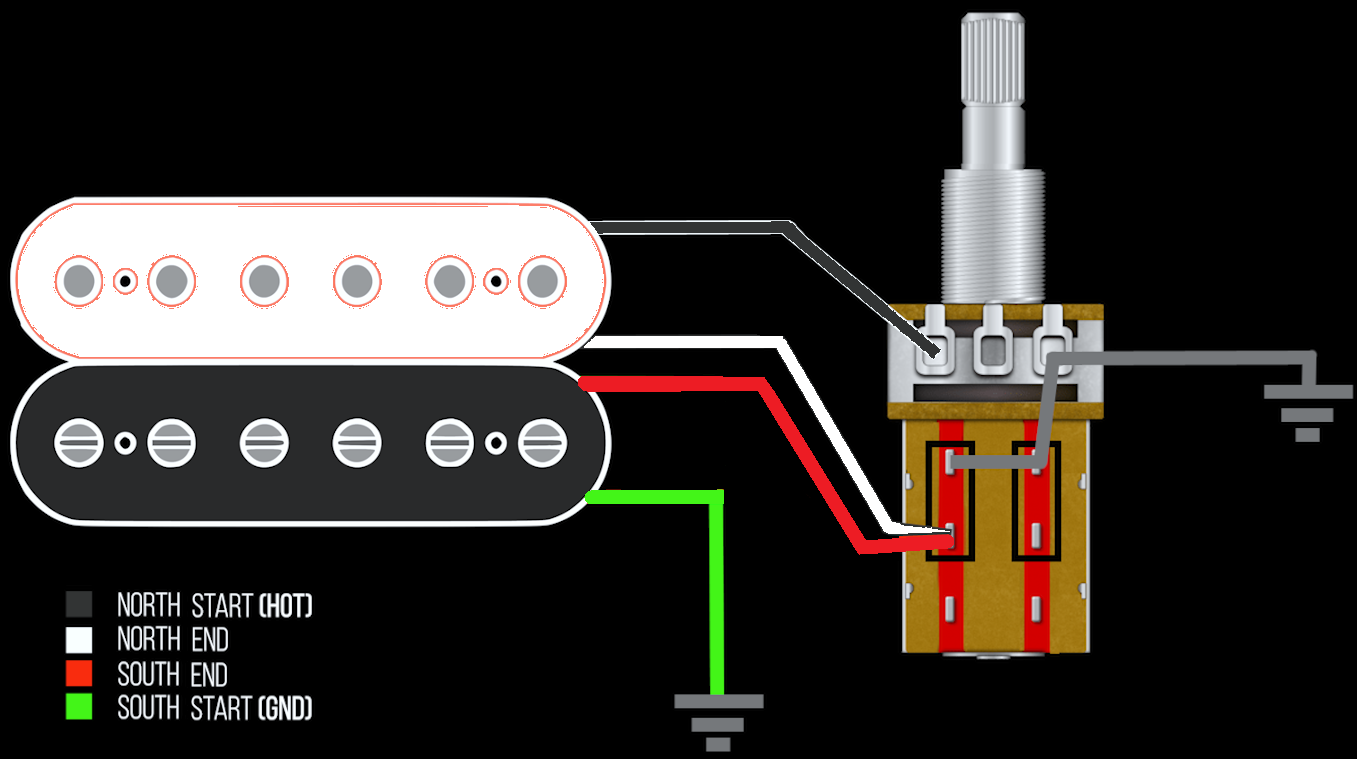

How to Install Split Coil?
If you’re considering this modification, you’ll need some basic tools and electronics knowledge.
Required Materials:
- Switch or push-pull potentiometer.
- Soldering iron and solder.
- Wiring diagram (usually provided by the pickup manufacturer).
Tip: If you’re not experienced with electronics, consider taking your guitar to a technician or luthier.
Spin-a-Split: Coil Splitting Without a Push-Pull
Spin-a-Split is a variation of Split Coil that uses a standard potentiometer (linear or logarithmic) instead of a push-pull pot. This design allows you to gradually control how much signal is diverted from one coil rather than simply turning the second coil on or off. Essentially, it works as a “blend control” between the full humbucker and single-coil mode.
How Does Spin-a-Split Work?
Instead of fully disconnecting one coil, the potentiometer adjusts how much signal from one coil is sent to the ground. This allows for intermediate tones, from a thick humbucker to a brighter single-coil, and everything in between.
Spin-a-Split Advantages:
- Precise tonal control: Adjust the coil output to your preference.
- Simple modification: Does not require additional switches or extra space.
- Wider tonal range: Achieve unique tones not possible with standard Split Coil.
How to Install Spin-a-Split?
Here’s a basic wiring guide to implement Spin-a-Split:
-
Required Materials:
- Standard potentiometer (250 kΩ or 500 kΩ, depending on your pickups).
- Standard wiring and soldering tools.
- Optional: Small capacitor for tonal adjustment.
-
Connection Diagram:
- Connect the middle terminal of the potentiometer to the coil you want to split.
- Connect one side terminal of the potentiometer to the ground.
- Leave the other terminal unconnected (or ground it for better stability).
What Type of Potentiometer to Use?
- 250 kΩ: Ideal for low-output pickups or single-coils.
- 500 kΩ: Better suited for high-output humbuckers.
When to Use Spin-a-Split?
Spin-a-Split is perfect for players who want subtle, customizable tonal control. If you’re less interested in instant switching but eager to explore nuanced sounds, this configuration is ideal.
Styles where Spin-a-Split shines:
- Jazz: Blend warm and clear tones for comping or solos.
- Progressive Rock: Offers a diverse tonal palette for different dynamics.
- Ambient and Shoegaze: Intermediate tones pair well with effects like reverb and delay.
Is Split Coil Right for Your Style?
Split Coil is especially useful for musicians seeking versatility in a single instrument. Here are some styles where Split Coil can make a difference:
- Rock and Metal: Use humbucker mode for powerful riffs and solos, and switch to single-coil for clean passages or arpeggios.
- Blues and Funk: Single-coil mode delivers clarity and attack for dynamic playing.
- Pop and Country: Combine the humbucker’s warmth with the single-coil’s definition for varied sections in a song.
Conclusion
Split Coil and Spin-a-Split are among the most effective modifications for expanding the tonal range of your electric guitar. They let you explore styles and sounds that previously required multiple instruments, all with a simple configuration change. If you’re seeking versatility and are willing to experiment, Split Coil could be an excellent addition to your guitar.
Give it a try and take your sound to the next level!
